Bullet Teeth

Fixed calipers by Wilwood offer unmatched stopping power. The pistons in fixed calipers are located on both sides of the disc, allowing for evenly distributed clamping force. They apply more squeezing power and apply it more evenly during braking as force is directly applied to both sides. Mul


  • Model number: CHB006
  • Power: 1000W
  • Colour: 黑色、灰色、黄色
  • Dimension: 100*320*100
  • Weight: 8kg

Product Details

YUXIANG bullet teeth is using the best imported high coarse carbide tips to ensure the tops durability in the tough working situation. The high coarse structure’s better heat conduction ability helps to reduce the bullet teeth working temperature.

All the bullet teeth are welded by the automatic welding line for production efficiency. By using heat treatment and welding line integrated method, it only demands one time heating, making the heat disturbing to the carbide tip to the minimum.

You can expect longer working time and less premature wear-out and break failure.





### 💎 Core Materials: Hardcore CP combinations


** Tooth material ** :

  截屏2025-05-16 08.57.20.png

42CrMo/30CrMnTi alloy steel 💪


Hardness range: HR48-52 (after quenching) | HRC43-47 (after tempering)


👉 The "skeletal system" equivalent to teeth, impacT-resistant HANDLE!

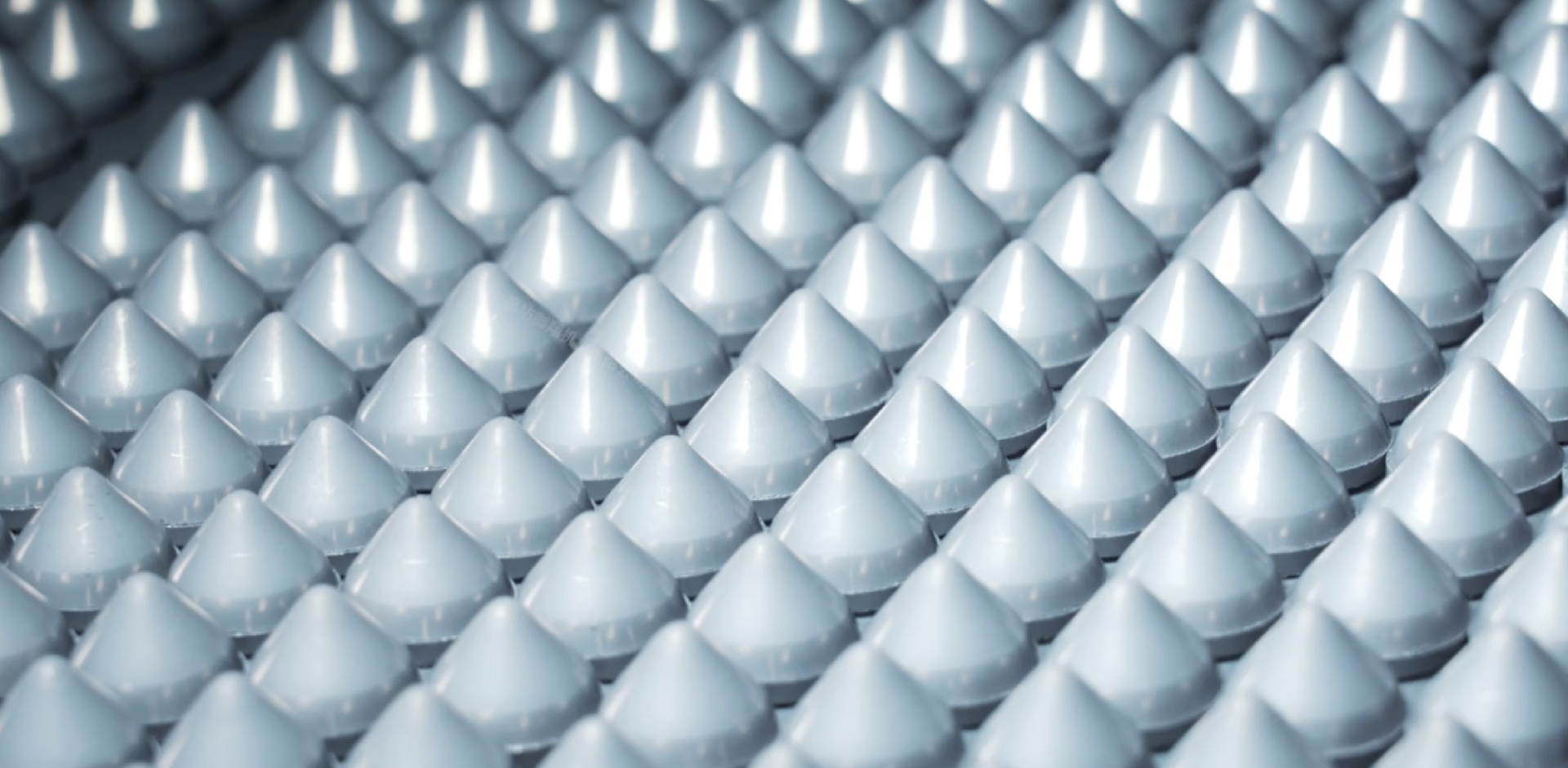

** Alloy formula ** :

截屏2025-05-16 08.56.18.png

🔹 Tungsten powder (W) → hardness bearing (hardness comparable to diamond!)


🔹 Cobalt (Co) → Toughness King (flexural strength increased by 30%+)


💡 The golden ratio is customizable! Different strata match different formulas:


- Soft rock strata → Cobalt content ↑


- Hard rock strata → Tungsten content ↑

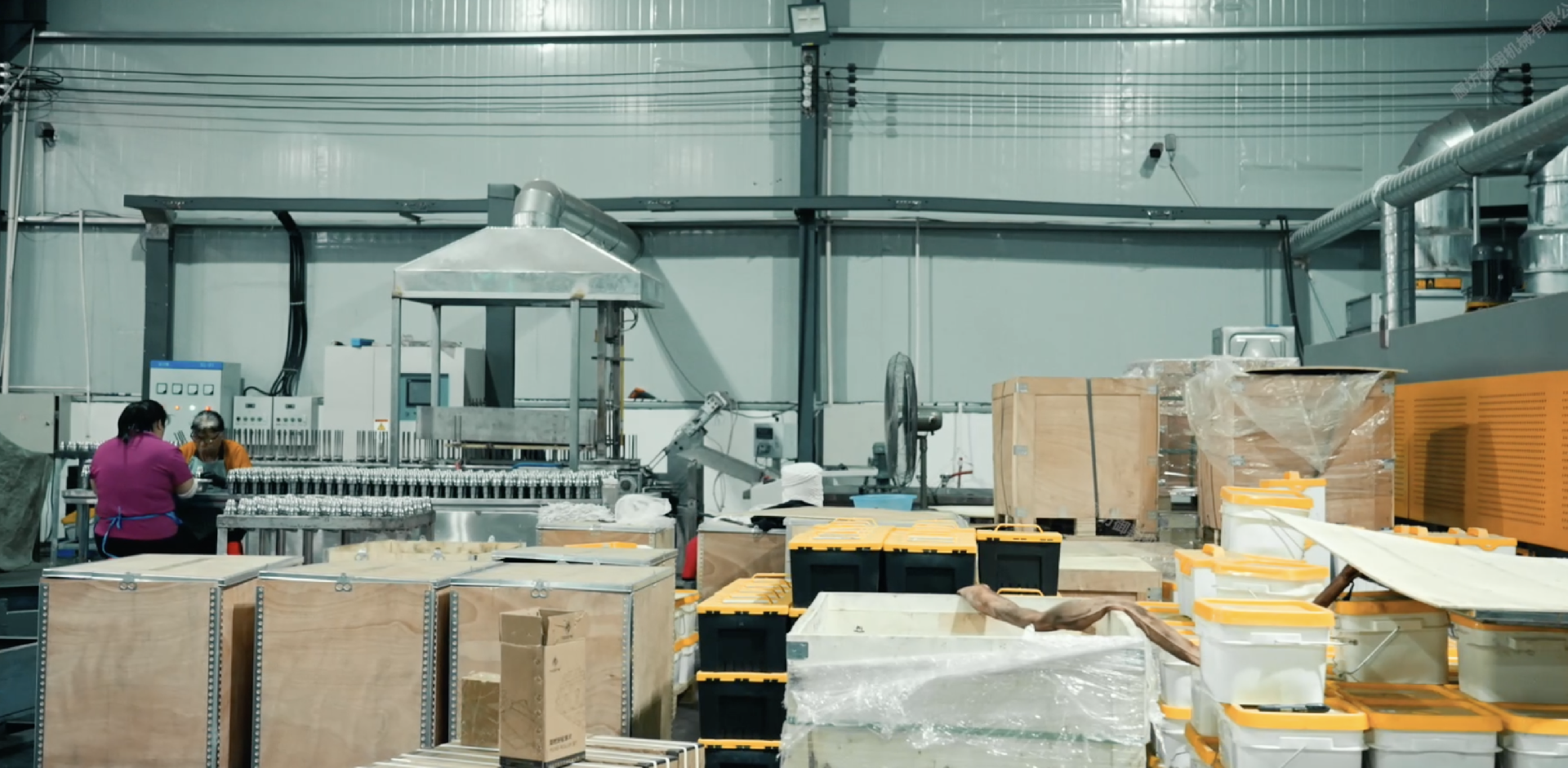

### 🏭 PRODUCTION PROCESS full process (clamp welding integrated production line)

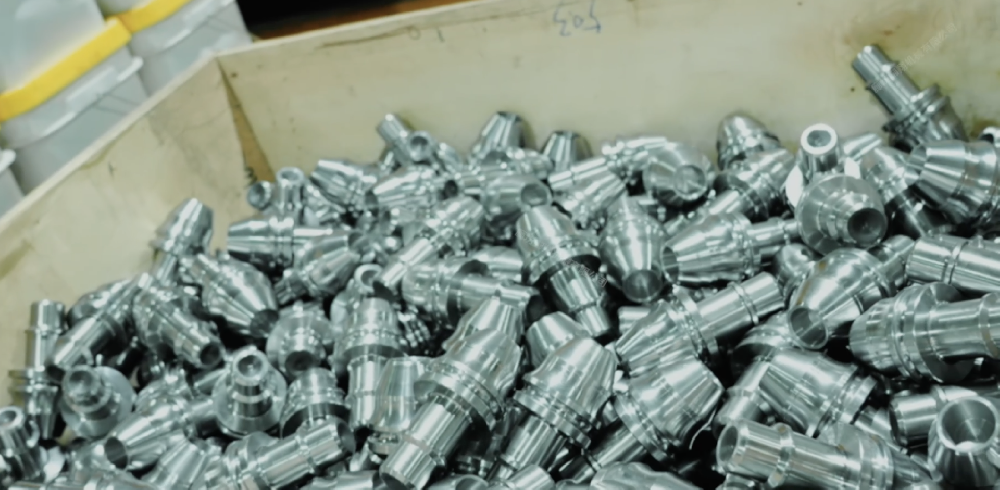

1️ ** Tooth formation **

截屏2025-05-16 09.02.47.png

Youdaoplaceholder0 Precision forging +CNC machining → error ≤0.05mm!


▸ Surface treatment: Sandblasting for rust removal → as bright as mirror ✨

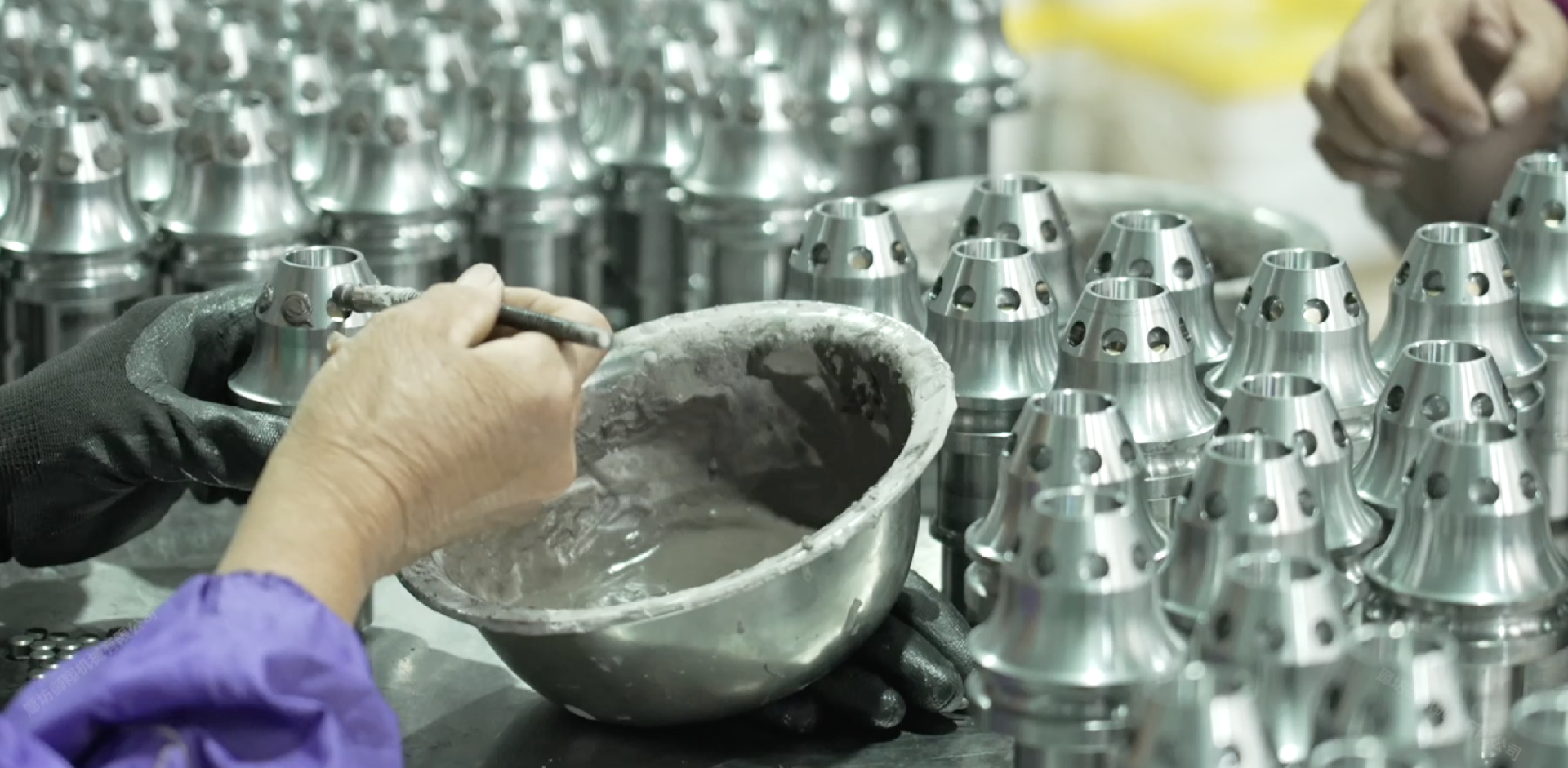

2️ Flux coating

截屏2025-05-16 08.57.39.png

Youdaoplaceholder0 Exclusive formula brazing agent → alloy welding strength ↑50%

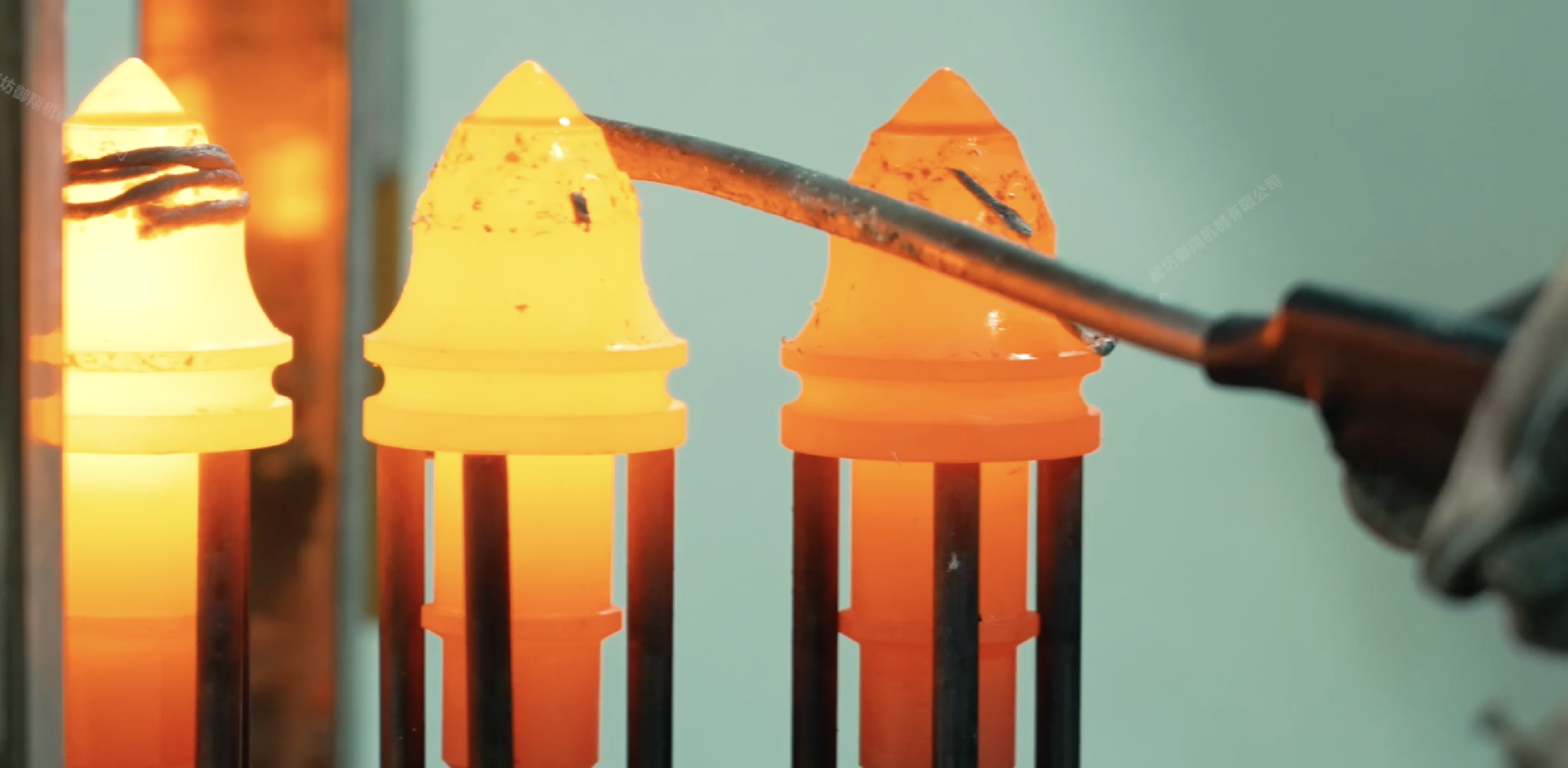

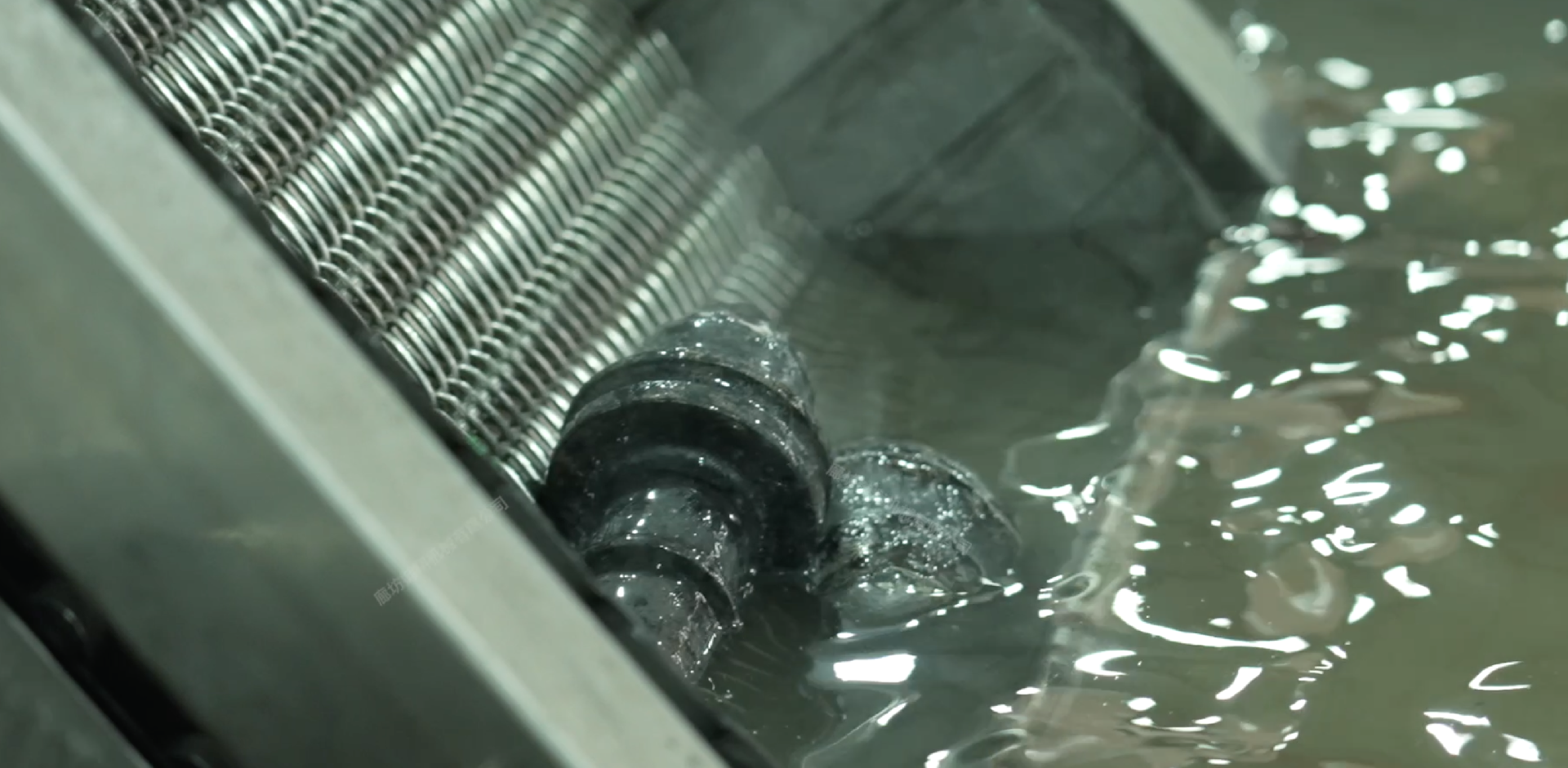

3️⃣ **淬火工艺**

截屏2025-05-16 08.56.48.png

截屏2025-05-16 08.56.52.png

截屏2025-05-16 08.57.01.png

🌡️ 瞬间冷却至-196℃!

➤ 硬度直接拉满 → 耐磨性提升3倍!

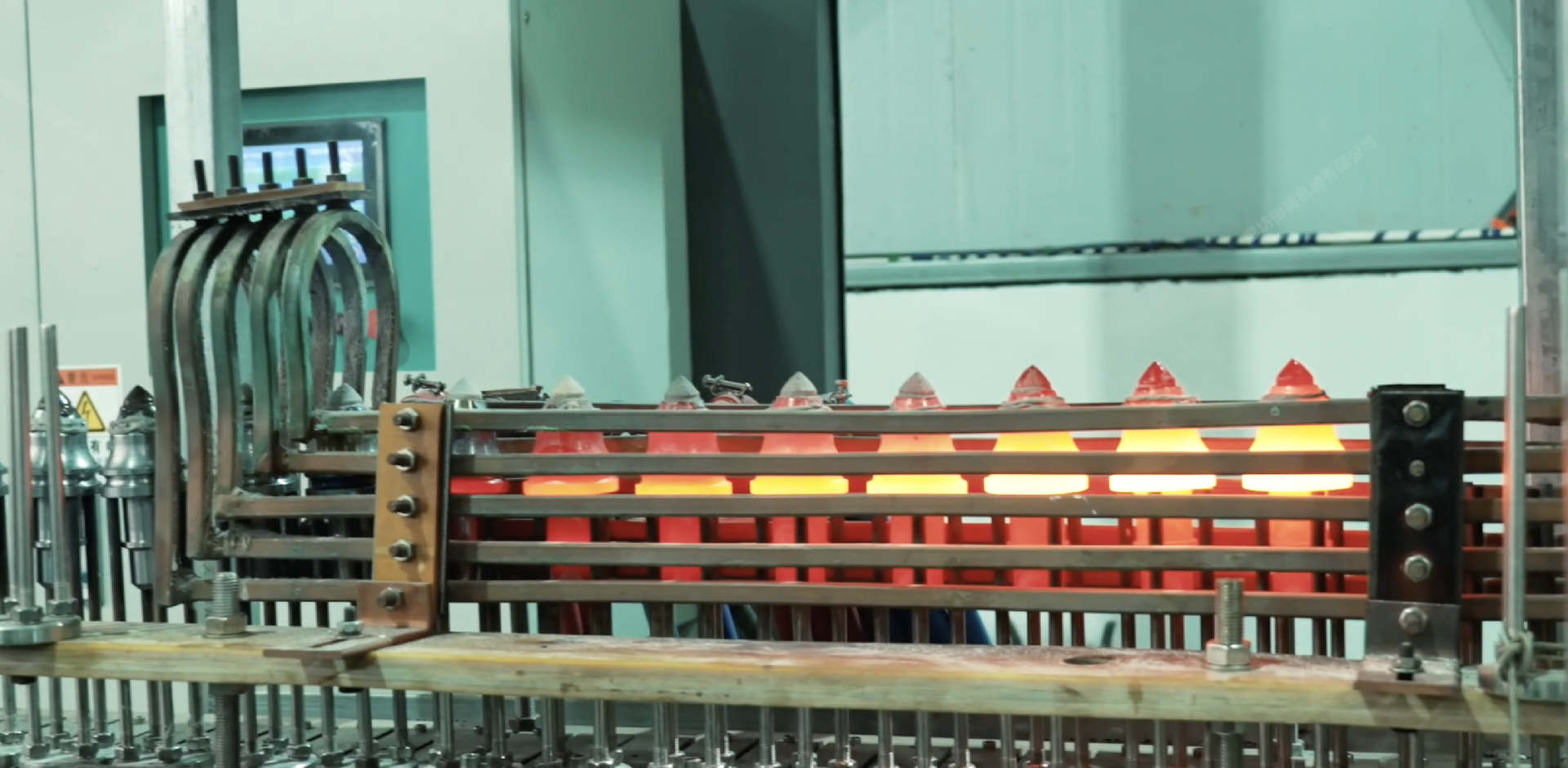

4️⃣ **回火处理**

截屏2025-05-16 08.57.26.png

🔥 200-600℃精准控温(不同型号有差异):

| 温度区间 | 特性变化 |

|----------|----------|

| 200-300℃ | 保持硬度+消除应力 |

| 400-600℃ | 韧性显著提升 |


5️⃣ **终极抛光**

💎 镜面级处理 → 摩擦系数降低15%!


### ⚡ 为什么选我们家?

✅ **地层定制专家**:针对花岗岩/页岩/砂岩等18种地层开发专属配方

✅ **寿命王者**:实测工作寿命超竞品40%+(附矿山实测对比图📈)

✅ **智能生产线**:全自动温控系统±1℃精度


### 💬 用户真实反馈

"换了这家的截齿后,钻进速度直接起飞🛫!原来2天换一次的齿现在能用5天!"——山西煤矿王工

"定制的高钴配方在粘土层表现绝了,再也不怕粘刀了!"——四川隧道项目部




截屏2025-05-16 09.09.32.png


🔍 **小知识**:截齿的合金头角度直接影响钻进效率!我们家提供15°-45°全系列角度定制~
